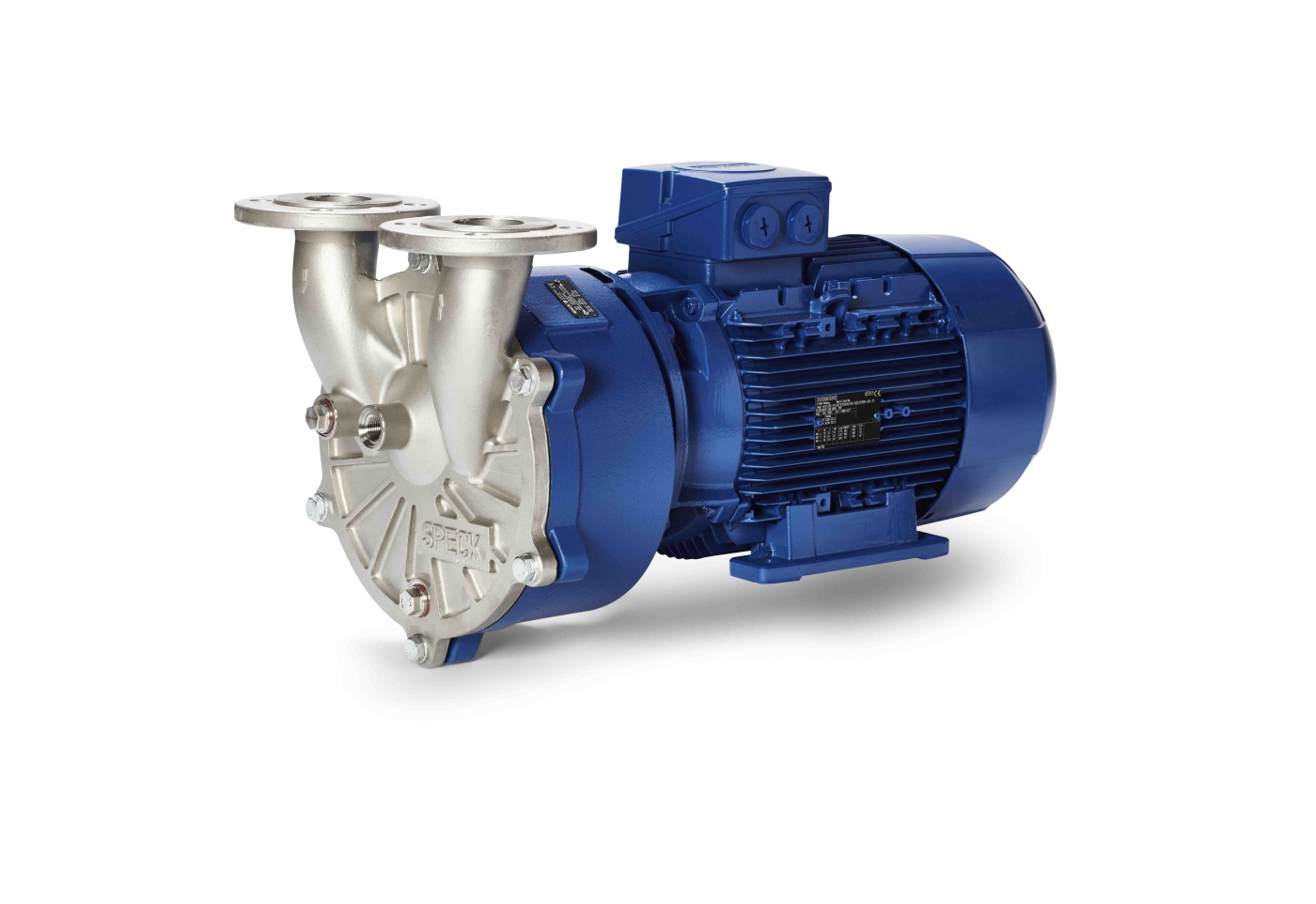

Speck VG Series
The Speck VG pumps have been specially developed for applications where a low maintenance interval is required. The pumps contain fewer parts than usual and are easy to disassemble. For example, the port plate is integrated in the pump housing, so that no more pollution can accur in the spaces that normally arise between the housing and the plate. Furthermore, the Speck VG series is equipped with a floating impeller and the variable valve port is missing. Available in 6 sizes, with a capacity of 30 to 250 m3/h.
Features VG series
- Close-coupled version with mechanical seal
- Bracket versions on request
- Single-stage, without valves
- Without dead spots
- VG 95 up to VG 255 thread execution or flange execution
- lnlet pressure up to 70, 55 and 40 mbar
- Operational liquid max. 80 °[
- Absorbed gas (dry) max. 200 °C
- Absorbed gas (saturated) max. 100 °C
- ATEX certified: Il 2G/2GD
- Flanges dimensions in acc. with EN 1092-2 PN 10, execution in acc. with ANSI standards on request
VG-30 VG-130
VG-55 VG-155
VG-95 VG-255
