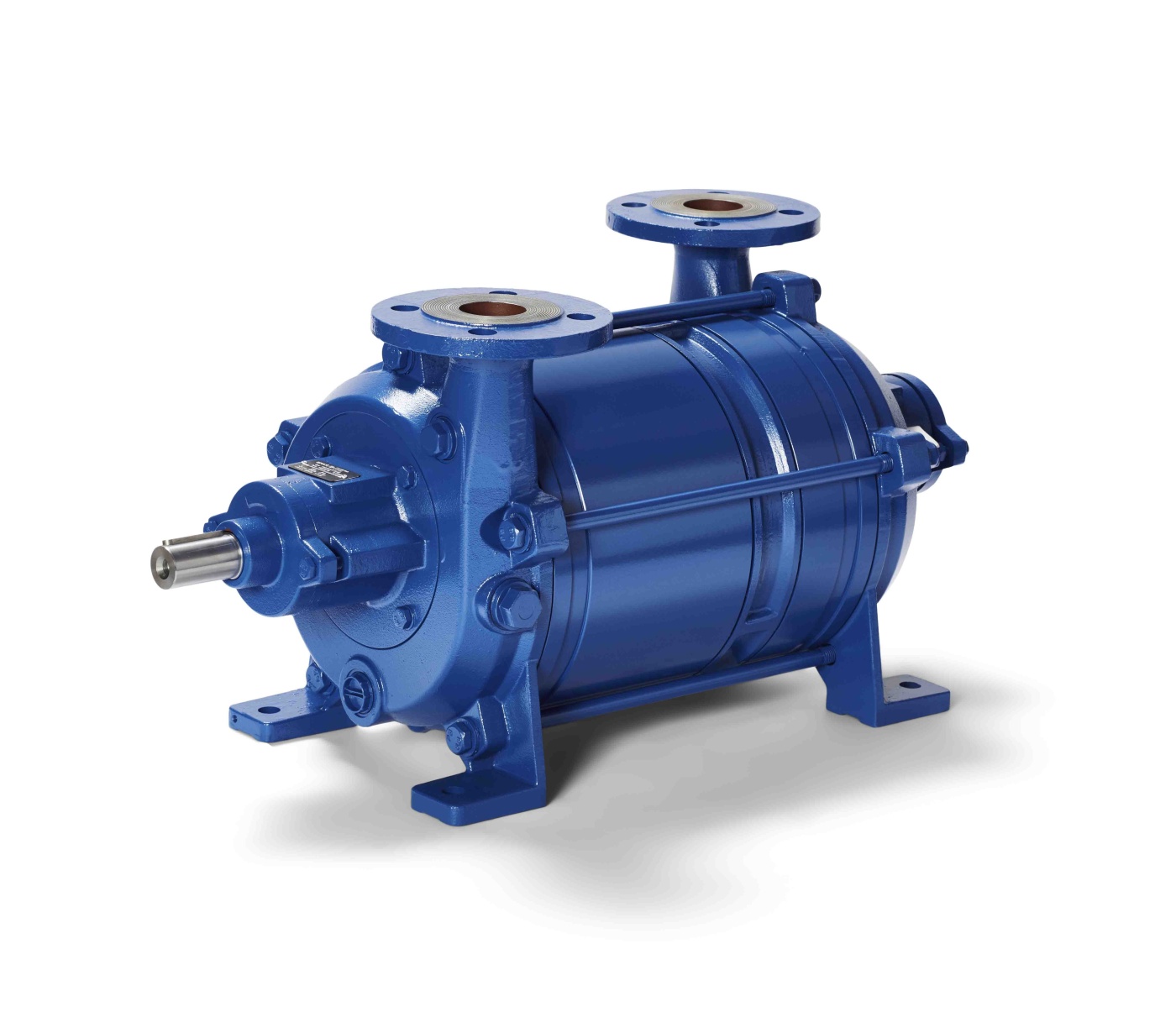

Speck VHC series
The Speck VHC series is the newly developed double stage liquid ring vacuum pump from Speck. The VHC series is compactly built, has fewer parts than the liquid ring pumps of previous generations and is therefore more competitively priced. The inter casings are made of stainless steel as a standard. Better flushing of the mechanical seals ensures a longer service life. The VHC series is available in a special ChemTal version. This version is certified by TA Luft and is available with a magnetic coupling and monitoring of seals and bearings. The standard VHC pumps are completely interchangeable with the Speck VH series and many comparable models from competing brands.
Features VHC series
- Robust design
- Double Stage Liquid Ring Vacuum Pump
- For applications with a duty point between 33 and 200 mbar(a)
- Maximum gas suction temperature (dry) 200° C
- Maximum gas suction temperature (saturated) 100° C
- Available with a capacity of 110 to 1600 m3/h.
- Available in ATEX II 1G/2G and II 2G/2GD
- Available in special ChemTal version, for chemistry.
- Available on a baseplate or as a free shaft pump.
VHC0110, VHC0350, VHC0800
VHC0140, VHC0400, VHC1200
VHC0180, VHC0500, VHC1600
VHC0300, VHC0600,
